There are two kinds of Turbine Gun, high-pressure type and large flow type. Both of them are with front handle which can easily change the spray pattern.
It can also change in working (under pressurization), solid stream (straight) with pulling the handle and spread (cone spray) with pushing the handle.
Moreover, Turbine Gun is excellent in workability, equipped with trigger lock for prevention from an operation mistake, and nozzle protection (plastic) at the point of gun and etc.Long distance fountain is possible by using solid stream (straight), and it is ideal for occurrence prevention of particulates and dust during dismantling of building.

Turbine Gun(High-Pressure Type)

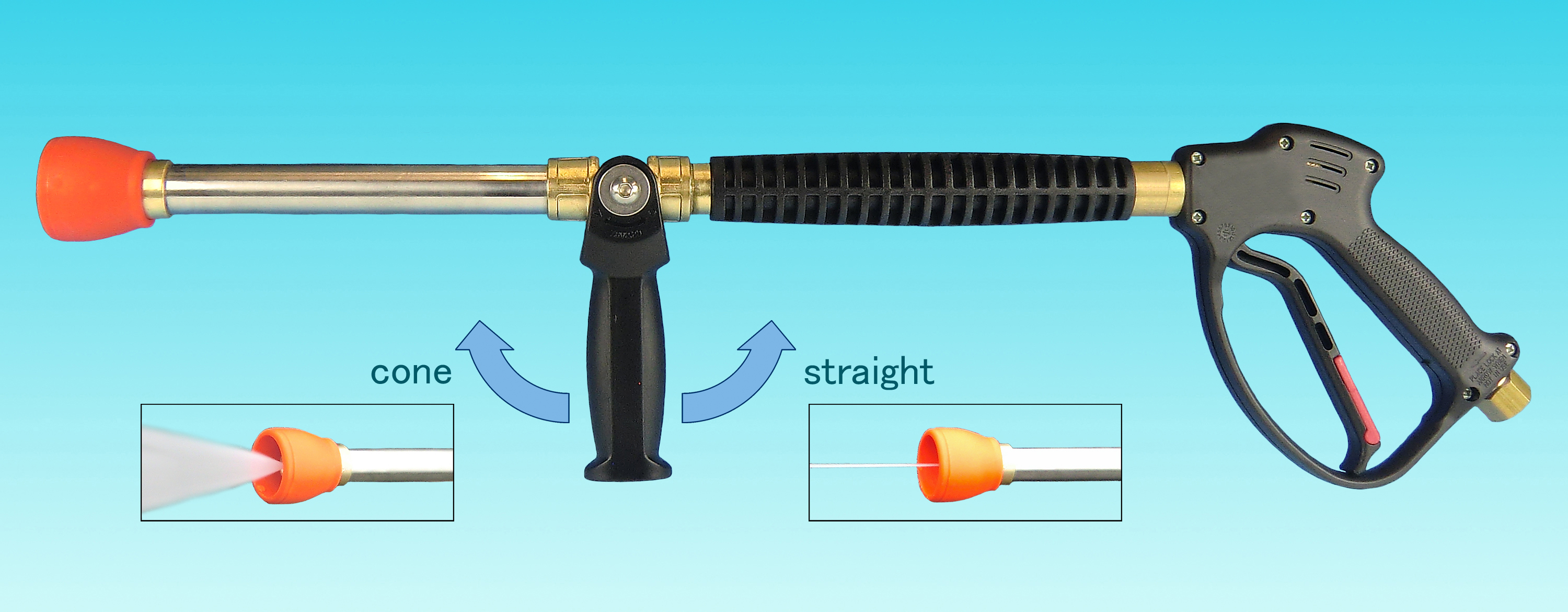

Part No.	TEGN-1
Max. working pressure	25.0MPa
Max. working Temp.	100℃
Max. flow rate	30 l/min.
Length	720mm
Weight	1.6kg
Inlet	G3/8 Female
Max. Spray Tip Nozzle	φ3.5
Materials	Brass,Stainless Steel, High Strength Plastic

↑Back to TOP

Turbine Nozzle

Part
No.

Hole
Dia.

Performance

Pressure

8.0MPa

10.0MPa

12.0MPa

15.0MPa

20.0MPa

C
(※1)

S
(※2)

C
(※1)

S
(※2)

C
(※1)

S
(※2)

C
(※1)

S
(※2)

C
(※1)

S
(※2)

TEN10

φ1.0

Capacity l/min.

5.6

5.8

6.5

6.7

6.9

7.1

7.7

7.9

8.9

9.1

Spray Angle

35ﾟ

－

30ﾟ

－

30ﾟ

－

25ﾟ

－

25ﾟ

－

TEN12

φ1.2

Capacity l/min.

7.2

8.2

8.0

9.2

8.8

10.1

9.8

11.3

13.0

Spray Angle

40ﾟ

－

35ﾟ

－

30ﾟ

－

30ﾟ

－

30ﾟ

－

TEN15

φ1.5

Capacity l/min.

9.7

10.8

12.1

11.9

13.2

13.3

14.8

15.4

17.1

Spray Angle

40ﾟ

－

40ﾟ

－

35ﾟ

－

35ﾟ

－

35ﾟ

－

TEN18

φ1.8

Capacity l/min.

13.1

14.5

14.6

16.2

16.0

17.7

17.9

19.8

20.6

22.9

Spray Angle

40ﾟ

－

40ﾟ

－

40ﾟ

－

35ﾟ

－

35ﾟ

－

TEN20

φ2.0

Capacity l/min.

14.6

18.5

16.3

20.7

17.9

22.7

20.0

25.3

23.1

29.2

Spray Angle

45ﾟ

－

45ﾟ

－

40ﾟ

－

40ﾟ

－

40ﾟ

－

TEN23

φ2.3

Capacity l/min.

19.0

26.8

21.2

30.0

23.3

32.8

26.0

36.7

30.0

42.4

Spray Angle

45ﾟ

－

45ﾟ

－

40ﾟ

－

40ﾟ

－

40ﾟ

－

(※1) C ・・・ Cone spray
(※2) S ・・・ Straight spray

↑Back to TOP

Turbine Gun(large flow type)

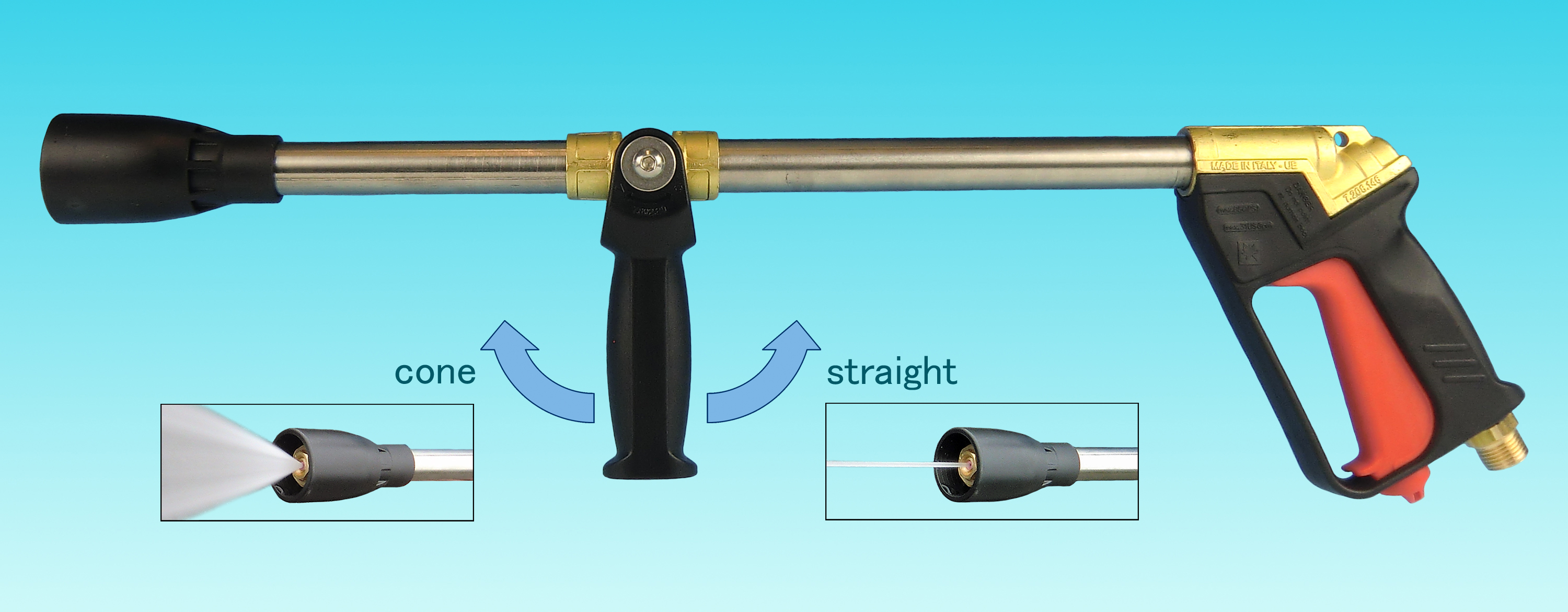

Part No.	TEGN-2
Max. working pressure	6.0MPa
Max. working Temp.	60℃
Max. flow rate	73 l/min.
Length	670mm
Weight	1.6kg
Inlet	G1/2 Male
Max. Spray Tip Nozzle	φ4.5
Materials	Brass,Stainless Steel, High Strength Plastic

↑Back to TOP

Turbine Nozzle

Part No.	Hole Dia.	Performance	Pressure
			1.5MPa		2.5MPa		3.5MPa		4.0MPa		4.5MPa		5.0MPa		6.0MPa
			C (※1)	S (※2)	C (※1)	S (※2)	C (※1)	S (※2)	C (※1)	S (※2)	C (※1)	S (※2)	C (※1)	S (※2)	C (※1)	S (※2)
TEN10	φ1.0	Capacity l/min.	2.45	2.50	3.00	3.10	3.40	3.50	3.55	3.65	3.75	3.85	4.00	4.10	4.40	4.55
		Spray Angle	18ﾟ	－	18ﾟ	－	20ﾟ	－	20ﾟ	－	22ﾟ	－	22ﾟ	－	22ﾟ	－
		Max. Throw m.	2.50	5.00	2.80	5.50	3.00	6.00	3.00	6.50	3.00	7.00	3.50	7.50	3.50	8.00
TEN12	φ1.2	Capacity l/min.	3.60	3.80	4.25	4.60	4.70	5.40	5.20	5.90	5.35	6.10	5.60	6.30	6.20	7.00
		Spray Angle	22ﾟ	－	22ﾟ	－	24ﾟ	－	24ﾟ	－	26ﾟ	－	26ﾟ	－	26ﾟ	－
		Max. Throw m.	2.80	5.80	3.00	6.20	3.20	6.50	3.40	6.90	3.40	7.50	3.60	8.00	3.70	9.00
TEN15	φ1.5	Capacity l/min.	4.60	5.10	5.70	6.50	6.60	7.40	6.90	7.80	7.30	8.20	7.70	8.60	8.30	9.50
		Spray Angle	25ﾟ	－	28ﾟ	－	28ﾟ	－	28ﾟ	－	30ﾟ	－	30ﾟ	－	30ﾟ	－
		Max. Throw m.	3.00	7.00	3.20	7.80	3.40	8.50	3.50	9.20	3.60	9.60	3.80	10.00	4.00	10.50
TEN18	φ1.8	Capacity l/min.	5.90	7.30	7.20	9.30	8.50	10.80	9.20	11.70	9.70	12.20	10.50	12.70	11.80	13.60
		Spray Angle	28ﾟ	－	30ﾟ	－	33ﾟ	－	33ﾟ	－	35ﾟ	－	35ﾟ	－	35ﾟ	－
		Max. Throw m.	3.20	7.90	3.50	8.50	3.70	9.00	3.90	9.70	4.20	10.40	4.50	11.00	4.70	12.00
TEN20	φ2.0	Capacity l/min.	6.90	8.80	8.10	11.70	10.20	13.40	10.90	14.30	11.70	15.20	12.50	15.80	13.50	17.10
		Spray Angle	30ﾟ	－	32ﾟ	－	35ﾟ	－	35ﾟ	－	35ﾟ	－	37ﾟ	－	37ﾟ	－
		Max. Throw m.	3.50	8.50	3.80	9.50	4.00	10.50	4.30	11.00	4.60	11.50	4.80	12.00	5.10	13.00
TEN23	φ2.3	Capacity l/min.	8.10	10.80	10.20	14.10	12.90	16.80	13.70	17.90	14.30	18.80	14.90	19.70	15.90	22.10
		Spray Angle	40ﾟ	－	40ﾟ	－	42ﾟ	－	42ﾟ	－	45ﾟ	－	45ﾟ	－	45ﾟ	－
		Max. Throw m.	3.70	9.50	4.00	10.50	4.50	11.50	4.80	12.00	5.10	12.50	5.50	13.00	5.80	14.00
TEN25	φ2.5	Capacity l/min.	9.20	13.00	11.40	16.40	14.00	19.10	14.50	21.00	15.40	22.00	16.40	23.00	18.20	25.40
		Spray Angle	42ﾟ	－	42ﾟ	－	45ﾟ	－	45ﾟ	－	50ﾟ	－	50ﾟ	－	50ﾟ	－
		Max. Throw m.	3.60	9.00	3.80	9.80	4.00	10.80	4.50	11.50	4.80	12.00	5.00	12.50	5.40	13.20
TEN30	φ3.0	Capacity l/min.	11.50	18.40	14.40	24.10	18.00	28.20	18.80	30.10	19.60	31.50	20.90	33.00	22.80	36.30
		Spray Angle	48ﾟ	－	48ﾟ	－	52ﾟ	－	52ﾟ	－	55ﾟ	－	55ﾟ	－	55ﾟ	－
		Max. Throw m.	3.80	9.50	4.00	10.50	4.20	11.00	4.50	11.80	4.80	12.20	5.00	13.00	5.20	13.50
TEN35	φ3.5	Capacity l/min.	13.10	24.20	16.80	30.50	20.00	36.00	21.40	38.50	23.00	41.50	24.50	44.00	27.50	50.00
		Spray Angle	55ﾟ	－	55ﾟ	－	60ﾟ	－	60ﾟ	－	60ﾟ	－	60ﾟ	－	60ﾟ	－
		Max. Throw m.	3.80	9.50	4.00	10.80	4.20	11.20	4.50	12.00	4.80	12.50	5.00	13.20	5.20	14.00
TEN40	φ4.0	Capacity l/min.	29.0	30.2	37.5	39.0	44.4	46.1	47.4	49.3	50.3	52.3	53.0	55.2	58.1	60.4
		Spray Angle	40ﾟ	－	40ﾟ	－	40ﾟ	－	40ﾟ	－	40ﾟ	－	45ﾟ	－	45ﾟ	－
		Max. Throw m.	5.0	12.5	6.5	13.5	7.5	14.5	8.0	15.5	8.0	16.5	9.0	17.5	9.0	18.5
TEN45	φ4.5	Capacity l/min.	33.7	36.4	43.5	47.0	51.5	55.6	55.0	59.5	58.4	63.1	61.5	66.5	67.4	72.8
		Spray Angle	45ﾟ	－	45ﾟ	－	45ﾟ	－	50ﾟ	－	50ﾟ	－	50ﾟ	－	50ﾟ	－
		Max. Throw m.	6.0	13.0	7.0	14.0	8.0	15.5	9.0	16.0	9.0	17.0	9.5	18.0	9.5	19.5

(※1) C ・・・ Cone spray
(※2) S ・・・ Straight spray

↑Back to TOP

TEN10～TEN35 Material：Brass,Alumina	TEN40～TEN45 Material：Brass (Electroless nickel plated)	TEGN-2 Set with Shoulder Belt	Conversion Nipple TGN68 ※For TEGN-1 （G3/8 Male × G1/2 Male）
